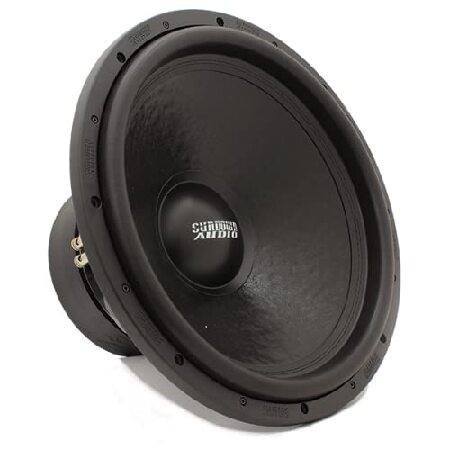

Sundown Audio U-18 D4 18" 1500W RMS Dual 4-Ohm U-Series Subwoofer
188,400
【商品の発送について】こちらの商品は海外拠点に在庫がございます。その為お届けまでに5-10営業日(土日祝日除く)程度お時間を頂いております。税関での通関時に商品の開封検査を受けることがございますが、商品の品質に影響はございませんのでご安心ください。その他、商品に関するご不明点等はお気軽にお問い合わせください。無線機器等につきまして、日本国内で使用される場合電波法に違反する可能性がございますのでご使用には十分ご注意ください。
・Sundown Audio U-18 D4 18" 1500W RMS Dual 4-Ohm U-Series Subwoofer
・Specifications: DC Resistance (Re): 6.1 Ω | Resonance Frequency (Fs): 31.4 Hz | Equivalent Volume (Vas): 135.4 L | Electrical Q Factor (Qes): 0.42 | Mechanical Q Factor (Qms): 3.55 | Total Q Factor (Qts): 0.38 | Voice Coil Inductance (Le): 3.97 mH | Force Factor (BL): 35.3 NA | Moving Mass (incl. Air Load) (Mms): 441.3 g | Suspension Compliance (Cms): 0.06 mm/N | Sensitivity: 91.8 dB 1w / 1m
・Box Recommendations: Sealed Enclosure Suggestion: 3.0 cu. ft. | Ported Enclosure Suggestion: 4.0 cu. ft. | Displacement: TBA | Depth: 10.11 in | Outside Diameter: 18.66 in | Cutout: 16.69 in | Recommended Tuning: 32 Hz | Recommended Port Area: 64 sq. in.
説明: Finalized terminal spacing, basket color, venting, cast aluminum surround clamp rings, etc. After about a year of work I think the U series maybe ready to start production soon. Stay tuned for more updates This will be our new series to bridge the gap from the SA to the X v.2 series -- it is also the most direct replacement for the discontinued Z v.3 series but at a much lower price. They use the same voice coil as the X v.2 series; therefore RMS power is 1500-watts rated conservatively. The motor is a similar design to the X v.2 series with one less magnet slug since it isn't needed for use on these frames & soft parts. It also retains a magnet ID shorting ring just like the X v.2 series motor. I have tooled 4 new cone bodies & surrounds to mate up to an entirely different frame tooling from the 1st prototypes. These surrounds are based on the Z v.3 18" surround geometry as this has been our go-to cone for SPL (we use those cones in our Terra for our World Record in SS 3-4 class). We also have tooled the cones to support the same wide-flange dust caps we use on all the new platform drivers. They also feature custom tooled cast aluminum vent spacers to mate up correctly to these frames. We tooled 2 different spacers for this line. Another new feature (also fully custom tooled) is the cast aluminum surround bolt-on ring. We tooled one for each size U series. These woofers will have a similar sound to the Z v.3 series -- meaning they do not have the "new platform" sound of the X, Z, NS, etc.
カテゴリー: スピーカー
メーカー:
ブランド: Sundown Audio
高さ: 55.9 センチ
幅: 40.6 センチ
奥行: 40.6 センチ
重量: 24.0 Kg
