ご注文確定後、海外拠点から日本へ発送いたしますのでお届けまでに5-10営業日(土日祝日除く)程度お時間を頂いております。税関での通関時に商品の開封検査を受けることがございますが、商品の品質に影響はございませんのでご安心ください。その他、商品に関するご不明点等はお気軽にお問い合わせください。無線機器等につきまして、日本国内で使用される場合電波法に違反する可能性がございますので十分ご注意ください。
- Four DMX outputs: All 5-Pin DMX outputs
- One DMX input: 3-Pin and 5-Pin male connector for connection to only 1 DMX input
- All outputs are optically isolated (protects against up to 1000V of stray voltage)
- Controls up to 512 channels
- DIN rail mounting solution

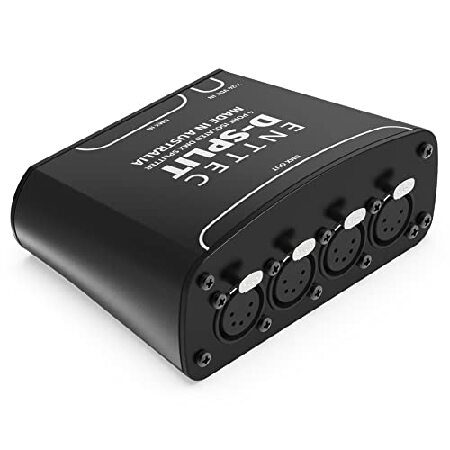

説明: The D-SPLIT is a 1 to 4 DMX 512 splitter, allowing you to send your signal in different directions or to increase the number of fixtures that you can send your signal to (DMX signal is limited to running through 32 fixtures). The D-SPLIT can provide more flexibility in connecting DMX controlled devices. Instead of having to make them all fit within a single daisy chain, each of the four outputs from the D-SPLIT can be the start of its own chain, and multiple DSPLITs can be linked together if needed. Technical Specifications: 4 DMX outputs: All 5-Pin DMX outputs Lightweight and portable. 1 DMX input: D-Split offers the flexibility of 3-Pin and 5-Pin male connectors for connection to only 1 DMX input. All outputs are optically isolated (protects against up to 1000V of stray voltage). DMX512-1990 compatible. Controls up to 512 channels Daisy chain via input ports without utilizing any output ports LED indicators when powered. External power supply (included). DMX pass through Wide voltage range Stealth design 3-year warranty Box Contents: D-Split Power supply with UK/EU/S/AU adaptor TS35 DIN clip & 2x mounting screws
カテゴリー:
メーカー: ENTTEC
ブランド: Enttec
高さ: 23.3 センチ
幅: 16.2 センチ
奥行: 6.9 センチ
重量: 0.5 Kg
