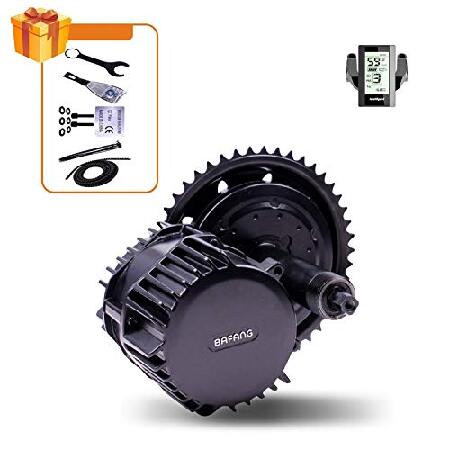

Electric Bike Conversion Ebike Motor Kit Bafang Mid Drive BBS02B 500W 750W BBSHD BBS03 1000W 8FUN E-Bike Components Electric Bicycle Central Engine wi

• Please note: The size of the bottom bracket of your bike is very important, please confirm it is suitable before buying
• [Universal Compatibility] The BBSHD engine has 3 bottom bracket specifications: 68mm/100mm/120mm, the 90/110mm bike needs to add a 10mm spacer. Suitable for most existing bikes, such as mountain bikes, city bikes, road bikes, cruiser bikes, fat bikes, etc.
• [Two Driving Modes] 2 driving modes: pedal assist mode for fast speed, pure electricity acceleration mode for easy driving. You will experience different and enjoyable riding
• [Easy Installation] You just need to use some usual tools with your both hands, easy to transform your bike into an awesome electric bike in a short time at low cost. Welcome to check our Youtube channel (DERUIZ) for further installation guides and troubleshooting
• [Global Shipping and Warranty] Shipped by DHL/UPS from L.A. warehouse, 2-7 days to your address (except islands), 1-year warranty, 100% replacement or refund if any quality problem, please contact us at any time
• [All Accessories Included] Contains all necessary conversion accessories; including bafang BBSHD 1000W mid-drive motor, brake levers or brake sensors for hydraulic brakes, thumb throttle, chainring wheel, crank, display, speed sensor, and magnets,1T4 wire, nuts, battery(optional) and free gifts

説明: Bafang BBS02B 500w 750w BBSHD 1000W Motor Kits with Optional LED TFT LCD Display Ebike Kits for Electric Bike
Motor Specification:
Motor type: BAFANG BBS02B 500W 750W BBSHD 1000W
Position: Mid drive motor
Construction: Gear drive
Rated voltage(DCV): 36V/48V/48V
Rated power(W): 500W/750W/1000W
Rpm: 113/118/140
Max Torque: 100 N.m/120/160
Efficiency (%): ?80
Pedal Sensor: Speed
Shaft Standard: JIS
Color: Black
Weight (kg): 4.3/4.3/5.6
Noise Grade (dB): < 55
Operating Temperature: -20-45℃
H-Brake: Yes
Gearsensor Function: Yes
Light Drive Capacity (DCV/W): 6/3(max)
Magnet Poles (2P): 8/16
IP: IP 65
Certifications: ROHS
Salt Spray Test Standard(h): 96

Packing List
1.?Bafang BBS02 500W 750W BBS03 1000W Motor
2.?Brake levers( Or hydraulic sensors, remark please)
3. Display---C965/850C/C18(TFT) optional
4. EB-BUS waterproof cable(1T4 cable)
5. Chain wheel with chainring plastic guard: 44T/46T(Note: For BBSHD motors, just 46T and no chainring cover.)---Optional
6. A pair of Cranks
7. Thumb Throttle
8. A set of Lock Nuts
9. Speed sensor and magnets
10. SIX GIFTS---Installation Tool, Headlight, 250w sticker, zip ties, Wrench Nut, wrapping wire. 11.Installation manual( installation videoand more Information on Youtube channel )

FAQ
1.?This Bafang mid drive motor is suitable for most standard bicycles. Among them, 500W 750W is suitable for the bike base size of 68-73mm and the 1000W motor for 68-73mm, 100mm, 120mm.
If the bottom size of your bicycle is about 90mm or 110mm, you can choose to add washers. This is also appropriate.
2. If you have any questions, please contact us at any time. Thank you for your support!


カテゴリー: 自転車
メーカー: BAFANG ELECTRIC CO.,LTD.
ブランド: BAFANG
高さ: 52.8 センチ
幅: 26.7 センチ
奥行: 26.7 センチ
重量: 7.5 Kg
