AW Electric Bicycle Front Wheel 24" E-Bike Conversion Kit 36V 750W Hub Bicycle Conversion Motor Kit

• [Powerful Brushless Motor]: Electric bicycle front wheel conversion kit features 36V 750W brushless and gearless hub motor for efficient and noiseless running; can easily convert your bicycle to electric bike and reach the maximum riding speed of 45 KM/H, suitable for regular bicycles used on commuting and short journey
• [Durable & Convenient]: Aluminum alloy frame for durability and stability, can support a heavy weight up to 220 Lbs; drive system without moving chains or gears for anti-friction; thumb throttle with 3 indicators for displaying battery status, perfect to avoid stopping working caused by low battery suddenly, you can charge the battery in time
• [Great Compatibility]: Fit for any 24" bicycle frame with 3 15/16" front dropout spacing; compatible for universal disc brake and V brake, you can choose the brake you need to use with the wheel, perfect for bicycle assembly and modification
• [Easy to Assemble]: Electric bike conversion kit includes necessary components for installation, easy to assemble all the parts together for converting ordinary bicycles to electric bikes; you can install the bike by yourself or find a bicycle store for assistance
• [Safe & Environmentally-Friendly]: Hand brakes shut off the motor automatically for saving energy and preventing the motor from overheating; CE certificated for quality and safety assurance; battery powered design for environmental protection

説明: Specifications:

- Overall Dimension(Dia.xW): 20 1/2" x 1 9/16" (52 x 4 cm)
- Compatible Tire Size: 24"
- Rim Diameter: 20 1/2" (52 cm)
- Axial Length: 6 7/8" (17.5 cm)
- Front Dropout Spacing: 3 15/16" (10 cm)
- Motor Diameter: 7 7/8" (20 cm)
- Controller Power: 750W
- Motor Voltage: 36V
- Motor Rotating Speed: 500 RPM
- Motor Torque: 50 N.m
- Recommended Battery Specification: 36V/25A
- Recommended Battery Capacity: More than 8.8 Ah
- Suitable Brake Type: Disc Brake / V-Brake
- Weight Capacity: 220 Lbs (100 kg)
- Climbing Angle: 12 Degrees
- Net Weight: 19.1 Lbs (8.65 kg)

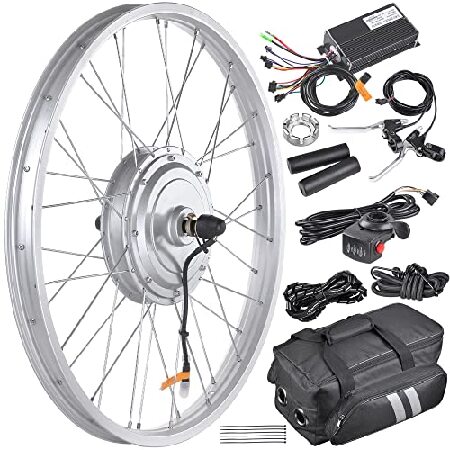

Package Contents:

- 1x 24" Front Wheel with Brushless Hub Motor (Tire is not included)
- 1x Electric Controller
- 2x Hand Brakes
- 2x Handle Grips
- 1x Thumb Throttle
- 1x Controller Bag
- 1x Strip
- 1x Winding Pipe
- 1 Set of Cable Ties
- 1x Manual
- 1x Spoke Key

Notice:

- Please note that Tire and Battery are NOT included in the package.
- Must to wear a helmet before riding this electric bicycle for protection.
- Please go to those automobile repair shop with standard business license for modification.
- If you have any question about the compatible Model, please contact our Customer Service before purchasing.
- For safety reasons, it is not recommended to use in rainy days
- It is only applicable to bicycle/mountain bike/BMX, not tricycles, tractors, etc;
- Suitable battery type and parameters: 36V, 25 Ah, travel about 20km;Recommended capacity is at least 8.8AH or above.

カテゴリー:
メーカー: AW
ブランド: AW
高さ: 55.9 センチ
幅: 55.9 センチ
奥行: 22.9 センチ
重量: 9.3 Kg
