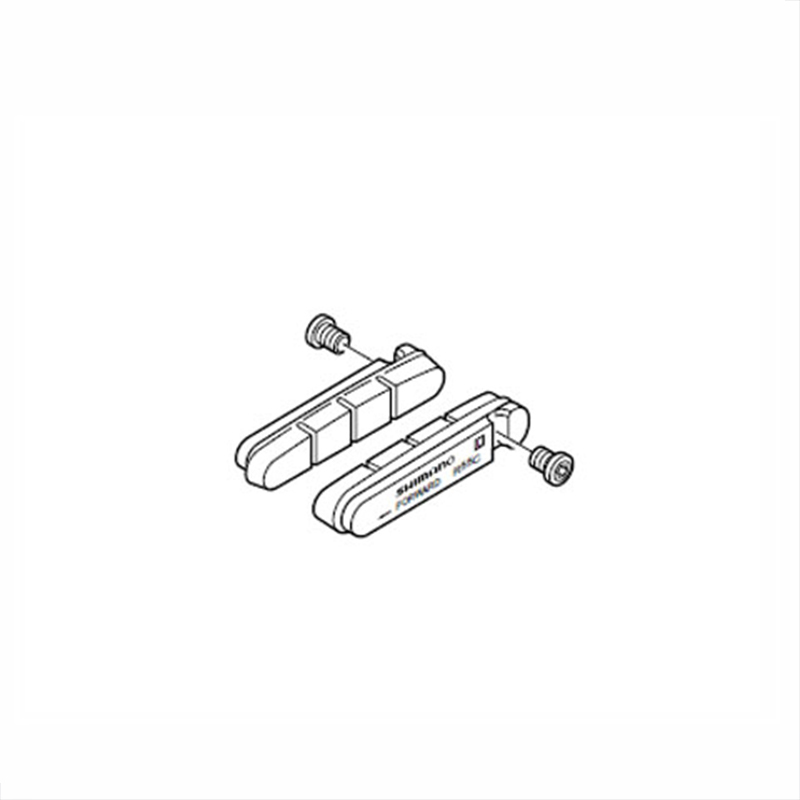

シマノ BRAKE SHOE ＆ FIXED SCREW ブレーキシュー＆固定ネジ R55C3 BR-7900 SHIMANO
976
＠コンポーネント・パーツ≫消耗品・ワイヤー類≫ブレーキシュー（キャリパーブレーキ用） SHIMANO（シマノ）
●適応モデル：BR-7900、BR-7800、BR-7700、BR-6700、BR-6600-G、BR-6600、BR-6500、BR-5700、BR-5600-L、BR-5600、BR-5501、BR-5500、BR-R650、BR-R600、BR-R560
●カートリッジシュー
●長さ：55mm
●DIN規格：ドイツ工業規格
ブレーキシュー特性：ドライ、ウエット共に高い制動力。
| DURA-ACE Caliper Brake BR-7900 |  | |
| 番号 | 型番 | 商品名 |
| 01 | Y8FN98010 | Arm Bolt Unit (M6 x 17.5) |
| 02 | Y8A098060 | Ball Retainer Unit (Φ6) |
| 03 | Y88414100 | Set Bolt (M4) |
| 04 | Y8FN98020 | Front Pivot Bolt Assembly { Pivot Bolt: 52.5mm (2-1/16") / Pivot Nut: 10.5 mm } |
| Y8FN98030 | Front Pivot Bolt Assembly { Pivot Bolt: 52.5 mm (2-1/16") / Pivot Nut: 12.5 mm } | |
| Y8FN98040 | Front Pivot Bolt Assembly { Pivot Bolt: 52.5 mm (2-1/16") / Pivot Nut: 18.0 mm } | |
| Y8FN98050 | Front Pivot Bolt Assembly { Pivot Bolt: 52.5 mm (2-1/16") / Pivot Nut: 27.0mm } | |
| Y8FN98130 | Front Pivot Bolt Assembly { Pivot Bolt: 52.5 mm (2-1/16") / Pivot Nut: 32.0mm } | |
| Y8FN98060 | Rear Pivot Bolt Assembly { Pivot Bolt: 37.8 mm (1-1/2") / Pivot Nut: 10.5 mm } | |
| 05 | Y85575310 | Pivot Nut (10.5 mm) for Front / Rear |
| Y85575320 | Pivot Nut (12.5 mm) for Front | |
| Y85574310 | Pivot Nut (18.0 mm) for Front | |
| Y8A023200 | Pivot Nut (27.0 mm) for Front | |
| Y8A023210 | Pivot Nut (32.0 mm) for Front | |
| 06 | Y85527000 | R-Washer for Front |
| 07 | Y87008100 | Set Washer (Φ12) |
| 08 | Y84B98050 | Ball Retainer Unit (Φ7) |
| 09 | Y8FN10000 | Arm Spring |
| 10 | Y84B11000 | Sleeve |
| 11 | Y8BW11100 | Arm Spring Adjusting Bolt |
| 12 | Y8FA09000 | EC-Bolt (M4 x 10.2) |
| 13 | Y8FN98100 | Cable Adjusting Bolt Unit |
| 14 | Y8FN98070 | R55C3 Cartridge-Type Brake Shoe Set (Pair) |
| 15 | Y8FA16000 | Tire Guide |
| 16 | Y8FN98090 | R55C3 Cartridge-Type Brake Shoes & Fixing Bolts (Pair) |
| Y8FN98140 | R55C3 Cartridge-Type Brake Shoes & Fixing Bolts (Pair) for Carbon Rim | |
| Y8FA98140 | R55C Cartridge-Type Brake Shoes & Fixing Bolts (Pair) for Carbon Rim | |
| 17 | Y8FA17000 | Fixing Bolt (M4 x 5.5) |
| 18 | Y8G698090 | Shoe Fixing Bolt Unit (M5 x 11.2) |
| 19 | Y8FN98110 | Quick Release Assembly |
| 20 | Y8FA98110 | Quick Release Fixing Bolt (M4 x 4.8) & Washer |
| 21 | Y8A098150 | Cable Fixing Bolt (M6 x 8.5) & Plate |
