シマノ スモールパーツ・補修部品 BR-4700F アームスプリング Y8MG27000 SHIMANO
173
＠シマノスモールパーツ SHIMANO（シマノ）

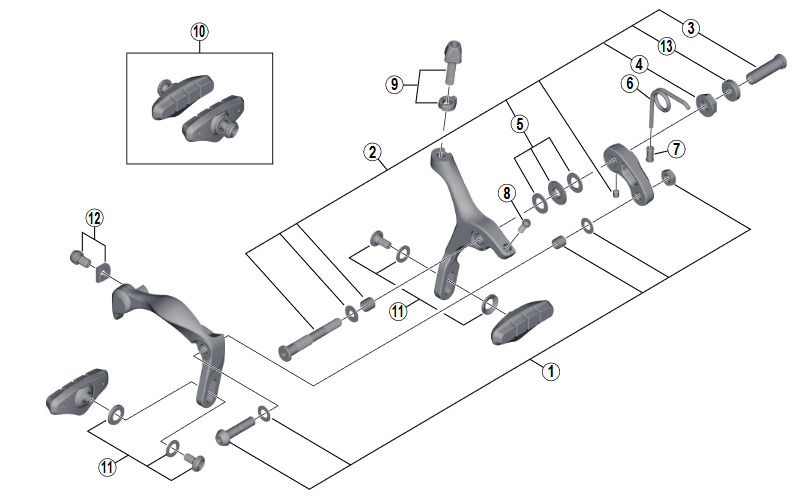

| TIAGRA Caliper Brake BR-4700 |  | |
| 番号 | 型番 | 商品名 |
| 01 | Y8MG98010 | Arm Bolt Unit (M6 x 26.5) |
| 02 | Y8MG98020 | Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 10.5 mm} |
| Y8MG98030 | Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 12.5 mm} | |
| Y8MG98040 | Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 18.0 mm} | |
| Y8MG98050 | Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 27.0 mm} | |
| Y8MG98060 | Front Pivot Bolt Assembly {Pivot Bolt: 50.4 mm (2") / Pivot Nut: 32.0 mm} | |
| Y8MG98070 | Rear Pivot Bolt Assembly {Pivot Bolt: 35.7 mm (1-13/32") / Pivot Nut: 10.5 mm} | |
| 03 | Y85575110 | Pivot Nut (10.5 mm) for Front/Rear |
| Y85575020 | Pivot Nut (12.5 mm) for Front | |
| Y85574010 | Pivot Nut (18.0 mm) for Front | |
| Y8A023000 | Pivot Nut (27.0 mm) for Front | |
| Y8A023300 | Pivot Nut (32.0 mm) for Front | |
| 04 | Y8E604000 | Lock Nut |
| 05 | Y84B98050 | Ball Retainer Unit (Φ7) |
| 06 | Y8MG27000 | Arm Spring for Front |
| Y8MG27010 | Arm Spring for Rear | |
| 07 | Y8BY08000 | Spring Bush |
| 08 | Y8JY10000 | EC-Screw (M4 x 10.2) |
| 09 | Y8MG98080 | Cable Adjusting Bolt & Clip |
| 10 | Y8MG98090 | R50T5 Brake Shoe Set (5 pairs) |
| Y8L998010 | R50T4 Brake Shoe Set (5 pairs) | |
| 11 | Y8MG98100 | Shoe Fixing Bolt Unit |
| 12 | Y8BT98010 | Cable Fixing Bolt (M6 x 9) & Plate |
| 13 | Y85850120 | Washer D6 |
