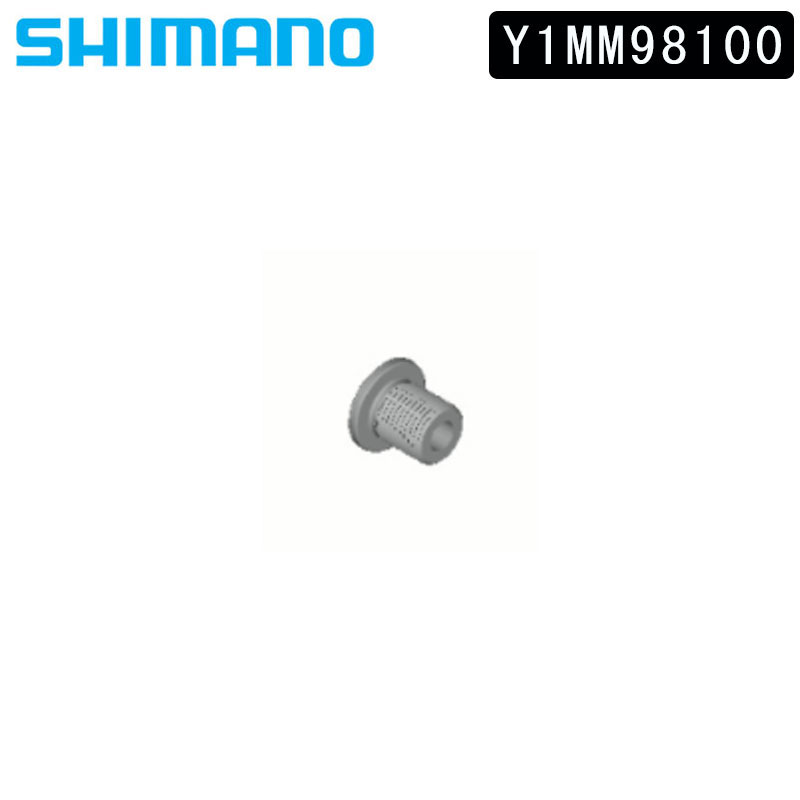

シマノ スモールパーツ・補修部品 インナーギア固定ボルト（M8×8.5 / 4個） Y1MM98100 SHIMANO
979
＠シマノスモールパーツ SHIMANO（シマノ）
'
■Y1MM98100
●フロントチェーンリングタイプ：ダブル、シングル
●ギア取付けボルト (M8 x 8.5 / 1ユニット = 4個)
【対応モデル】
●FC-M7000-11-2, FC-M7000-11-B2, FC-M7000-11-1, FC-M7000-11-B1
【互換性のあるシリーズ】
●SLX M7000 シリーズ
■製品仕様
●モデル番号：Y1MM98100
●シリーズ：SLX M7000 シリーズ
●スピード：11スピード
| SHIMANO 105 Crankset FC-5800 、SM-BBR60 |  | |
| 番号 | 型番 | 商品名 |
| 01 | Y1P417000 | Crank Arm Fixing Screw |
| 02 | Y1PH98010 | Left Hand Crank Arm 165 mm (Black) |
| Y1PH98020 | Left Hand Crank Arm 165 mm (Silver) | |
| Y1PH98030 | Left Hand Crank Arm 170 mm (Black) | |
| Y1PH98040 | Left Hand Crank Arm 170 mm (Silver) | |
| Y1PH98050 | Left Hand Crank Arm 172.5 mm (Black) | |
| Y1PH98060 | Left Hand Crank Arm 172.5 mm (Silver) | |
| Y1PH98070 | Left Hand Crank Arm 175 mm (Black) | |
| Y1PH98080 | Left Hand Crank Arm 175 mm (Silver) | |
| 03 | Y1GS21000 | Clamp Screw with Washer (M6 x 21) |
| 04 | Y1GE98050 | Plate |
| 05 | Y1F316000 | Ring |
| 06 | Y1P598010 | Left Hand Adapter (B.C.1.37" x 24T) English Thread (SM-BBR60) |
| Y1P598020 | Left Hand Adapter (M36 x 24T) Italian Thread (SM-BBR60) | |
| 07 | Y1G398150 | Inner Cover & O-Ring |
| 08 | Y1TF21000 | O-Ring |
| 09 | Y1P598030 | Right Hand Adapter (B.C.1.37" x 24T) English Thread (SM-BBR60) |
| Y1P598040 | Right Hand Adapter (M36 x 24T) Italian Thread (SM-BBR60) | |
| 10 | Y1MM98100 | Gear Fixing Screw (M8 x 8.5 / 4 pcs.) |
| 11 | Y1PH34000 | Chainring 34T-MA for 50-34T (Black) |
| Y1PH34010 | Chainring 34T-MA for 50-34T (Silver) | |
| Y1PH36020 | Chainring 36T-MB for 52-36T (Black) | |
| Y1PH36030 | Chainring 36T-MB for 52-36T (Silver) | |
| Y1PH39000 | Chainring 39T-MD for 53-39T (Black) | |
| Y1PH39010 | Chainring 39T-MD for 53-39T (Silver) | |
| 12 | Y1PH98090 | Chainring 50T-MA for 50-34T (Black) |
| Y1PH98100 | Chainring 50T-MA for 50-34T (Silver) | |
| Y1PH98110 | Chainring 52T-MB for 52-36T (Black) | |
| Y1PH98120 | Chainring 52T-MB for 52-36T (Silver) | |
| Y1PH98130 | Chainring 53T-MD for 53-39T (Black) | |
| Y1PH98140 | Chainring 53T-MD for 53-39T (Silver) | |
| 13 | Y13009260 | TL-FC25 Adapter Installation Tool |
| 14 | Y13009270 | TL-FC37 Adapter Installation Tool |
