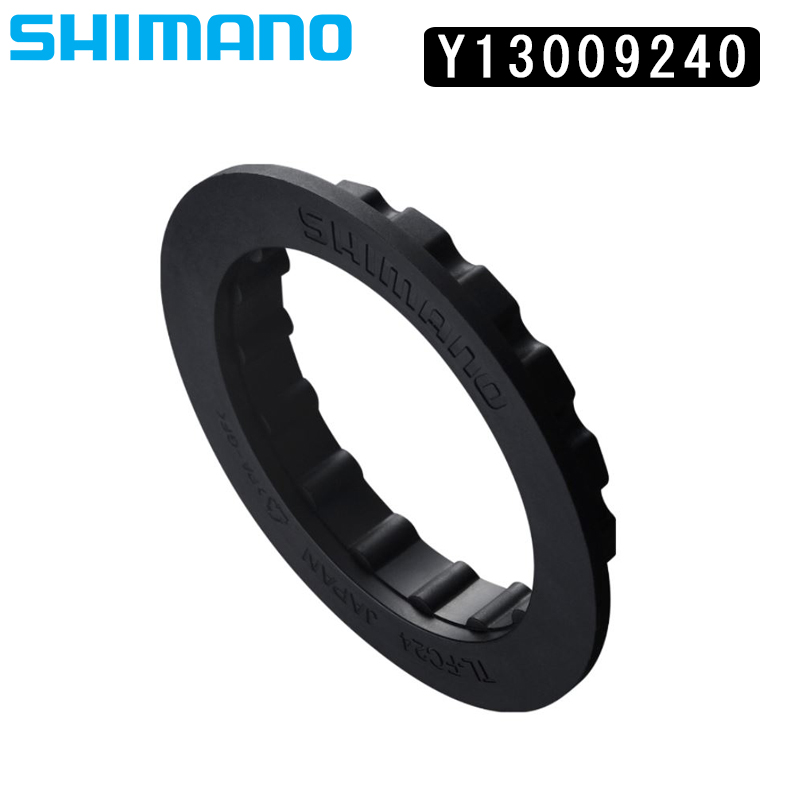

シマノ スモールパーツ・補修部品 TL-FC24 アダプター取付け工具 （SM-BB9000変換用アダプター） Y13009240 SHIMANO
517
＠シマノスモールパーツ SHIMANO（シマノ）
【使用】
●SM-BB9000、SM-BB93の取付けおよび取外し用
【特徴】
●TL-FC36で使用するアダプタースタイルツール
●ガラス強化樹脂
■ 製品仕様
●モデル番号： Y13009240
●シリーズ： SHIMANO
| DURA-ACE Crankset FC-R9100 BB-R9100 |  | |
| 番号 | 型番 | 商品名 |
| 01 | Y1N218000 | Crank Arm Fixing Bolt |
| 02 | Y1VP98060 | Left Hand Crank Arm Unit 165 mm |
| Y1VP98070 | Left Hand Crank Arm Unit 167.5 mm | |
| Y1VP98080 | Left Hand Crank Arm Unit 170 mm | |
| Y1VP98090 | Left Hand Crank Arm Unit 172.5 mm | |
| Y1VP98100 | Left Hand Crank Arm Unit 175 mm | |
| Y1VP98110 | Left Hand Crank Arm Unit 177.5 mm | |
| Y1VP98120 | Left Hand Crank Arm Unit 180 mm | |
| 03 | Y1E512000 | Clamp Bolt (M6 x 15) |
| 04 | Y1GE98050 | Plate |
| 05 | Y1F316000 | Ring |
| 06 | Y1VR98010 | Left Hand Adapter (B.C.1.37" x 24T) English Thread (BB-R9100) |
| Y1VR98020 | Left Hand Adapter (M36 x 24T) Italian Thread (BB-R9100) | |
| 07 | Y1KY98130 | Inner Cover & O-Ring |
| 08 | Y1TF21000 | O-Ring |
| 09 | Y1VR98030 | Right Hand Adapter (B.C.1.37" x 24T) English Thread (BB-R9100) |
| Y1VR98040 | Right Hand Adapter (M36 x 24T) Italian Thread (BB-R9100) | |
| 10 | Y1H598160 | Gear Fixing Bolt (M8 x 10.1 / 1 Unit = 4 pcs.) |
| 11 | Y1VP34000 | Chainring 34T-MS for 50-34T |
| Y1VP36000 | Chainring 36T-MT for 52-36T | |
| Y1VP39000 | Chainring 39T-MW for 53-39T | |
| Y1VP42000 | Chainring 42T-MX for 54-42T/55-42T | |
| 12 | Y1VP98010 | Chainring 50T-MS for 50-34T |
| Y1VP98020 | Chainring 52T-MT for 52-36T | |
| Y1VP98030 | Chainring 53T-MW for 53-39T | |
| Y1VP98040 | Chainring 54T-MX for 54-42T | |
| Y1VP98050 | Chainring 55T-MX for 55-42T | |
| 13 | Y13009240 | TL-FC24 Adapter Installation Tool |
| 14 | Y13009250 | TL-FC34 Adapter Installation Tool |
