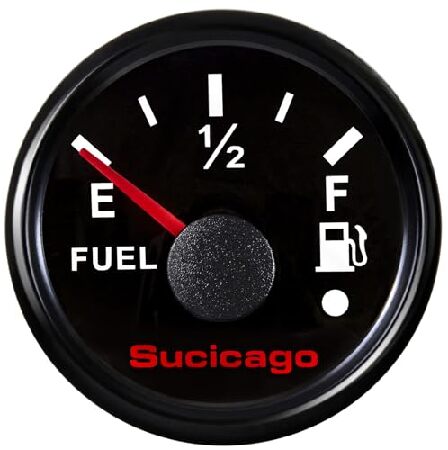

【並行輸入品】 Sucicago Boat Fuel Gauge Marine Aftermarket 2-1/16"(52mm) Automotive Replacement Fuel Level Gauge Marine 240-33ohms, 0-90ohms, 0-190ohm
14,600
当サイトをご覧頂き誠にありがとうございます。弊社商品は全て正規店からの新品・並行輸入品です。税関手続・関税払いは全て弊社で対応の上、全国送料無料でお届けします。弊社海外倉庫より国内に発送しますので、お届けまで2-15営業日程度お時間を頂いております。税関検査により無作為に開封された場合、ごく稀に外箱に損傷が生ずる場合がありますが、商品自体の品質には問題ございませんのでご安心ください（本商品は並行輸入品のため、メーカーによる保証・修理およびアフターサービスはお受けいただけません。あらかじめご了承くださいますようお願い申し上げます）。
・Update Version We Received Feedback From Customers Who Wanted A Plug & Play Gauge That Could Automatically Alert When Fuel Level Is Low, Select The Resistance Range, And Program The Backlighting With A Push Button. So, We Completely Redesigned It―Our Upgraded Fuel Gauge Now Includes All Three Features
・Low-Fuel Alert The Red Warning Light Automatically Flashes At 13% Fuel Level To Keep You From Running Out Of Fuel.
・［Simple to select the ohm Range］1)Put The Gauge In Setup Mode By Pressing The Black Button On The Back And Hold It For 3 Sec, Or Until The Backlight Flashes, Then Release. 2)Cycle Through Options:Quickly Press The Button Again To Switch Between Calibration Ranges. The Needle Moves To Show The Selected Range:
・Needle
Position E - - - - - F
E 10 ~ 180 ohms
1/4 240 ~ 33 ohms (The default setting from the factory is: 240 ~ 33 ohms.)
1/2 0 ~ 190 ohms
3/4 0 ~ 90 ohms
F 240 ~ 30 ohms
3)The Gauge Will Stay On The Last Selected Range. Choose The Setting That Matches Your Sensor.
4)Once The Desired Range Is Selected (By Advancing The Needle To One Of The Above Ranges With Each Press), Leave It Alone And The Gauge Will Timeout And Go Back Into Operational Mode.
・7 Color Adjustment Cycle Modes Backlight Is A Nice Touch And Easy To Cycle To The Desired Color. Includes Red (Default), Green, Blue, White, Yellow, Yellow Green, Orange, Purple, Making It Easy To Read At Night Or In Bright Sunlight.
・［Stepper Motor Movement ］This Sucicago Boat Fuel Gauge Is Powered By Stepper Motor Technology, Giving You Consistent And Accurate Fuel Level Gauge Readings And Extremely Smooth Needle Movement, Allowing You To Closely Monitor The Level Of Fuel In Your Boat Or Truck. This Needle Stays Stable And Sweeps Smoothly Without Bouncing, Even When The Boat Is In Motion Or Facing Choppy Waters.
・［Easy To Install］The Large Threaded Nut Tightens Easily By Hand. The Instruction Is Easy To Follow. The Sucicago Fuel Gauge Is Built To Withstand Harsh Marine Or Outdoor Environments. The Gauge Bodies Are IP67 Rated With Anti-Fogging And Scratch-Resistant & UV-Resistant Lens Cover, 316 Stainless Steel Bezel - No Rust, Corrosion Resistant, Long Service Life. Working Voltage: 9-32V.
説明: The Sucicago Signal Selectable Fuel Level Gauge Is Designed To Measure And Display The Amount Of Gas Or Fuel In Your Boat Or Vehicle's Tank. It Is Compatible With Fuel Level Sensors That Have The Following Output Signals: 240-33 Ohms, 0-190 Ohms, 240-30 Ohms, 0-90 Ohms, And 10-180 Ohms. It Can Be Adjusted By Simply Pressing A Button.
Product Specifications：
-Fixing Dimension: 52mm(2") or 2-1/16''
-Indicating Range: Empty- Full
-Signal Selectable : 240-33ohms, 0-190ohms, 240-30ohms, 0-90ohms, 10-180ohms.
-Connector: Multi-plug Socket Connection
-Working Voltage: 9-32V
-Movement: Stepper Motor Movement
-Protection Rating: IP67
Package Includes:
1x Marine Fuel Gauge
1 x Wiring harness
1x Installation Instruction
Note:.
1)This Sucicago Fuel Gauge Can Only Work With The Level Sender With The Corresponding Resistive Output ： 240-33ohms, 0-190ohms, 240-30ohms, 0-90ohms, 10-180ohms.
2)This Boat Fuel Gauge Can Not Work with the Fuel Sending Unit with Output Signal(0-30ohms, 0-180 ohms,73-10 ohms etc.)
3)If You’re Unsure of The Type Sensor That Was Installed Into Boat/Vehicles. Please Use The Multi-meter To Measure The Resistance Range Of Your Sending Unit When Empty And Full (Example: Approx 8 And 184 ohms ).You Can Select The 10-180 ohm Range. Just Press And Hold The Mode Button For 3 Seconds To Put It Into Setup Mode.
カテゴリー: 電気機械式計器
メーカー: Sucicago Direct
ブランド: Sucicago
高さ: 9.0 センチ
幅: 6.5 センチ
奥行: 6.5 センチ
重量: 0.1 Kg
