NOYITO INA219 Bi-Directional DC Current Power Supply Sensor Breakout Module (Pack of 2)

• The INA219 module is a zero-drift, bidirectional current/power supervisory integrated circuit (IC) with I2C interface.With the industry's highest accuracy and smallest size, the INA219 not only monitors the voltage drop across the shunt resistor, senses the shunt supply voltage, but also calculates the power supply.

• The INA219 achieves 1% maximum error accuracy over a temperature range of -40℃ to +85℃ with a maximum offset of 100 uV.

• The high accuracy combined with the 12-bit resolution of the product helps the user to reduce the voltage drop across the shunt resistor as much as possible, thereby minimizing power loss and power consumption and saving board space. The device can sense bus voltages from 0 V to +26 V.

• The programmable calibration register reads current directly in amps and reads power in watts. Up to 128 samples can be averaged for filtering in noisy environments.

• The I2C interface has a time-out setting that not only prevents bus lock-up but also provides a high-speed mode that meets communication requirements up to 3.4 MHz. All features of the INA219 support software programmable. It operates from a single supply and operates from +3.0 to +5.5V.


説明: Description:
MCU-219 The INA219 module is a zero-drift, bidirectional current/power supervisory integrated circuit (IC) with I2C interface.
With the industry's highest accuracy and smallest size, the INA219 not only monitors the voltage drop across the shunt resistor, senses the shunt supply voltage, but also calculates the power supply.
The INA219 achieves 1% maximum error accuracy over a temperature range of -40C to +85C with a maximum offset of 100 uV.
The high accuracy combined with the 12-bit resolution of the product helps the user to reduce the voltage drop across the shunt resistor as much as possible, thereby minimizing power loss and power consumption and saving board space. The device can sense bus voltages from 0 V to +26 V.

Other important features of the NA219 :
The programmable calibration register reads current directly in amps and reads power in watts.
Up to 128 samples can be averaged for filtering in noisy environments.
The I2C interface has a time-out setting that not only prevents bus lock-up but also provides a high-speed mode that meets communication requirements up to 3.4 MHz.
All features of the INA219 support software programmable.
It operates from a single supply and operates from +3.0 to +5.5V.

Package Included:

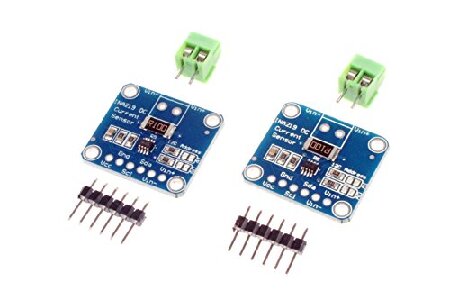

2pcs NOYITO INA219 Bi-directional DC Current Power Supply Sensor Module


全国送料無料。海外倉庫から国内に取り寄せますので、お届けまで2-3週間程度お時間頂いております。また、税関審査により、開封による外箱の損傷の可能性が稀にございますが、商品自体の品質は問題ございませんのでご安心ください。国内到着後に一度検品して発送させて頂きます。商品についてご不明な点がございましたら、「この商品について問い合わせ」ボタンからお気軽にお問い合わせください。(商品が電波法上の技術基準に適合する必要がある無線機器の場合：商品は並行輸入品でございますので、電波法上の技術基準に適合いたしません。日本国内で使用すると電波法に違反するおそれがありますのでご購入、ご使用には十分ご注意ください)

カテゴリー:
メーカー: NOYITO
ブランド: NOYITO
高さ: 13.2 センチ
幅: 8.9 センチ
奥行: 0.1 センチ
重量: 0.0 Kg
