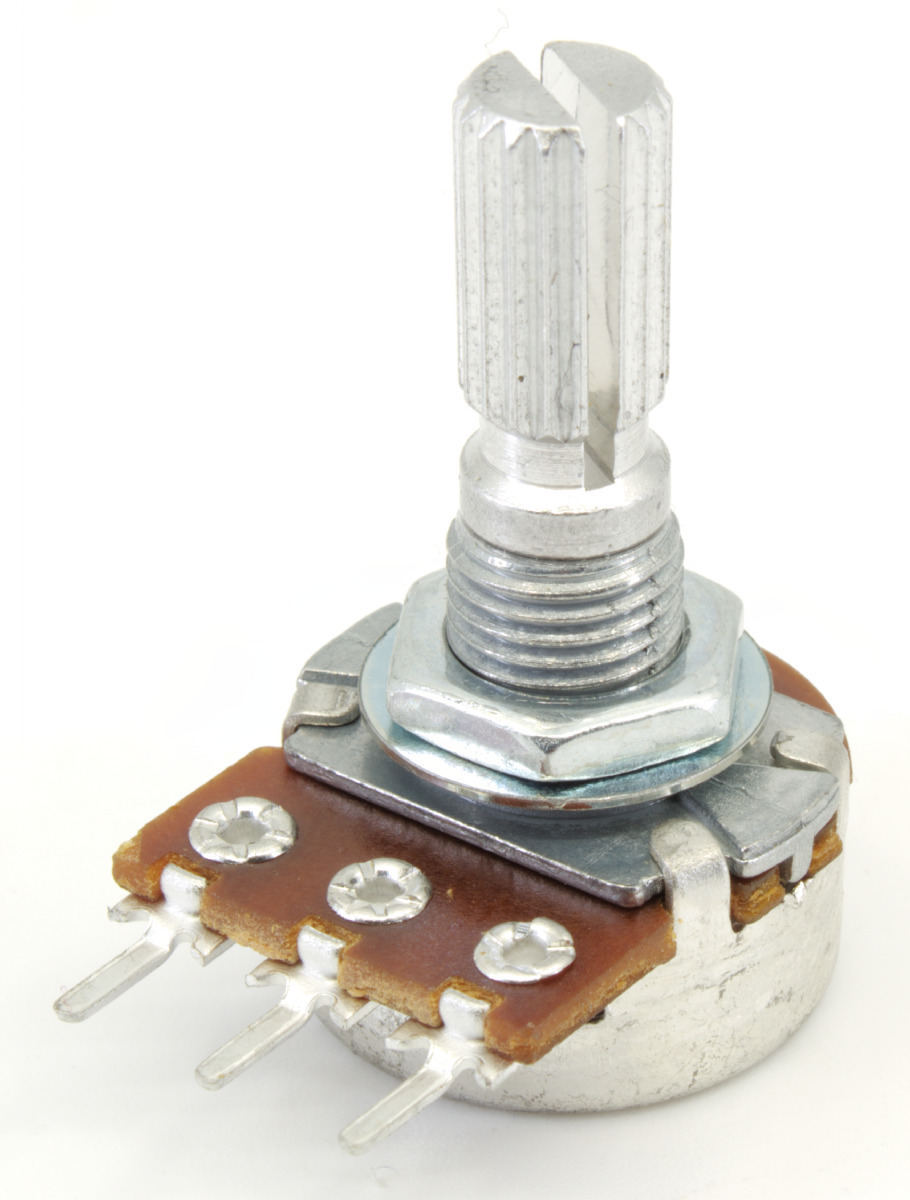

ポット Potentiometer - Linear, 16mm, Marshall Style, B220 kΩ [送料170円から 同梱可]
490
Linear (Bカーブ), 16mm, 7mm bushing., knurled split shaft.
Specification Sheet (pdf)
■測定値と仕様■
・製品測定値
Body Depth : 9.2 mm
Body Width : 17mm
Bushing Length : 6.5 mm
Bushing Thread : M7X0.75
C.C Torque : 100-350 gf-cm
Hex Nut Thickness : 2 mm
Hex Nut Width : 10 mm
Insulation Resistance : ＞100 MΩ at 500VDC
Life : 15,000 cycles
Manual Soldering Max Temp for 3 sec. : 300 °C
Max. Working Voltage : 200V
Max Rotational Stopper Strength : 8Kgf
Operating (Useable) Temperature : -10 °C to +70 °C
Rated Wattage (Power) : 0.2W
Rotational Torque : 20-300 gf-cm
Shaft Diameter : 6.35 mm
Sliding Noise : <47 mV
Tap Residual Resistance : ?20 Ω
Taper : Linear
Tolerance : ± 20%
Total Rotational Angle : 300° ±5°
Total Shaft Length : 20 mm
Washer I.D. : 7.2 mm
Washer O.D. : 12 mm
Washer Thickness : 0.4 mm
Withstand Voltage : 500 VAC for 1 min.
・パッケージ情報
Packaging Dimensions : 1.3 in. × 1 in. × 0.8 in.
Weight (Packaging) : 0.013 lbs.
在庫がある商品はヤフオク!ストアもご確認ください
